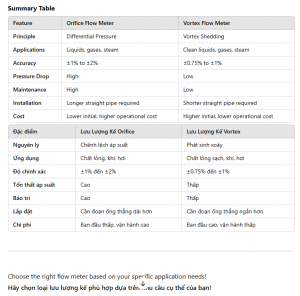

Comparison Between Orifice and Vortex Flow Meters
So Sánh Giữa Lưu Lượng Kế Lỗ Chảy (Orifice) và Lưu Lượng Kế Xoáy (Vortex)
1. Measurement Principle
Nguyên lý đo lường
- Orifice Flow Meter:
- Works on the principle of differential pressure.
- A plate with a hole (orifice) is placed in the flow path, creating a pressure drop across the orifice.
- The pressure difference is proportional to the square of the flow rate.
- Hoạt động dựa trên nguyên lý chênh lệch áp suất.
- Một tấm có lỗ được đặt trong dòng chảy, tạo ra sự giảm áp suất qua lỗ.
- Chênh lệch áp suất tỷ lệ với bình phương lưu lượng.
- Vortex Flow Meter:
- Operates based on the von Kármán vortex street principle.
- As fluid flows past a bluff body, alternating vortices are generated downstream.
- The frequency of these vortices is directly proportional to the flow rate.
- Hoạt động dựa trên nguyên lý xoáy von Kármán.
- Khi chất lỏng chảy qua một vật cản, các xoáy thay phiên nhau được tạo ra ở hạ lưu.
- Tần số của các xoáy này tỷ lệ thuận với lưu lượng.
2. Applications
Ứng dụng
- Orifice Flow Meter:
- Used for liquid, gas, and steam measurement in oil and gas, power, and chemical industries.
- Được sử dụng để đo chất lỏng, khí, và hơi nước trong các ngành dầu khí, năng lượng và hóa chất.
- Vortex Flow Meter:
- Ideal for measuring steam, gas, and low-viscosity liquids.
- Common in HVAC, chemical processing, and energy industries.
- Phù hợp để đo hơi nước, khí và chất lỏng có độ nhớt thấp.
- Ứng dụng phổ biến trong HVAC, chế biến hóa chất và ngành năng lượng.
3. Accuracy
Độ chính xác
- Orifice Flow Meter:
- Accuracy range: ±1% to ±2% of full scale.
- Độ chính xác từ ±1% đến ±2% của dải đo tối đa.
- Vortex Flow Meter:
- Generally more accurate, around ±0.75% to ±1%.
- Thường có độ chính xác cao hơn, khoảng ±0.75% đến ±1%.
4. Pressure Drop
Tổn thất áp suất
- Orifice Flow Meter:
- Creates significant pressure drop due to flow restriction.
- Gây tổn thất áp suất lớn do hạn chế dòng chảy.
- Vortex Flow Meter:
- Minimal pressure drop, making it more energy-efficient.
- Tổn thất áp suất thấp, tiết kiệm năng lượng hơn.
5. Maintenance
Bảo trì
- Orifice Flow Meter:
- Requires frequent cleaning and calibration.
- Cần vệ sinh và hiệu chuẩn thường xuyên.
- Vortex Flow Meter:
- Low maintenance; no moving parts.
- Bảo trì thấp; không có bộ phận chuyển động.
6. Installation
Lắp đặt
- Orifice Flow Meter:
- Requires longer straight pipe sections for accurate measurement.
- Cần các đoạn ống thẳng dài hơn để đo chính xác.
- Vortex Flow Meter:
- Requires less straight pipe length, easier to install.
- Yêu cầu đoạn ống thẳng ngắn hơn, dễ lắp đặt hơn.
7. Cost
Chi phí
- Orifice Flow Meter:
- Lower initial cost but higher operational cost.
- Chi phí ban đầu thấp nhưng chi phí vận hành cao.
- Vortex Flow Meter:
- Higher initial cost but lower operational cost.
- Chi phí ban đầu cao hơn nhưng chi phí vận hành thấp hơn.
